Flat Metal Roofs: Understanding Leaking Issues

Discover Effective Strategies for Identifying and Resolving Common Flat Roof Problems for Homes on the Central Coast

While flat roofs may not be the predominant choice in the Australian roofing market, they are gaining traction among both residential and commercial buildings. These roofing solutions are frequently seen on patios, carports, walkways, and other areas necessitating low-pitch roofing. In cases of minimal incline, flat roofs may also be termed “skillion roofs.”

Despite the numerous benefits that flat roofs provide, they are also accompanied by distinctive challenges that homeowners must be aware of. It is crucial to comprehend the common issues associated with flat roofing systems and to adopt measures to mitigate them, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing complications.

What Factors Are Driving the Increased Popularity of Flat Roofs Among Homeowners?

Flat roofs are becoming increasingly popular in both residential and commercial constructions for a variety of compelling reasons:

• They are quicker and simpler to install, which enables faster project completion
• They provide easier maintenance access, simplifying routine checks and repairs
• They serve as ideal platforms for solar panel installations, promoting energy efficiency

The most significant concern regarding flat roofs is the management of water drainage. Water poses the most significant threat to your roof. When planning a new roof installation or renovating an existing one, it is essential to consider various factors, particularly rainfall, which can vary considerably across Australia's regions.

What Are the Primary Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that efficiently allow rainwater to flow off into gutters, flat roofs possess a limited slope. This design can lead to water pooling that persists for extended periods. If rainwater is not effectively channeled off the roof, it may cause:

• Surface staining and deterioration of roofing materials
• Structural weakening of roofing components over time
• Accumulation of mould and mildew, which can pose health risks
• Leaks that may infiltrate the building's interior

Addressing these challenges requires effective roof plumbing and thoughtful design that caters to the specific needs and challenges presented by flat roofs.

How Can You Optimise Flat Roof Designs for Maximum Drainage Efficiency?

Before installation, a qualified roofing contractor will evaluate several key factors that influence drainage efficiency:

• Local rainfall intensity and prevailing weather patterns
• Overall roof area and specific dimensions
• Gutter configurations and effective drainage outlets
• Specifications and dimensions of downpipes
• Overflow prevention strategies to manage excess water
• Considerations regarding roof pitch to enhance drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with a slope below this can jeopardise waterproofing efforts and may even void product warranties, leading to expensive repairs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are unsuitable for very low-pitch applications. For flat roofs, it is highly advisable to use specific roofing profiles engineered for efficient water drainage to ensure long-lasting performance.

Exploring the Most Effective Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Selecting the appropriate roofing profile based on your roof pitch and local rainfall conditions is essential for ensuring the long-lasting performance and reliability of your roofing system.

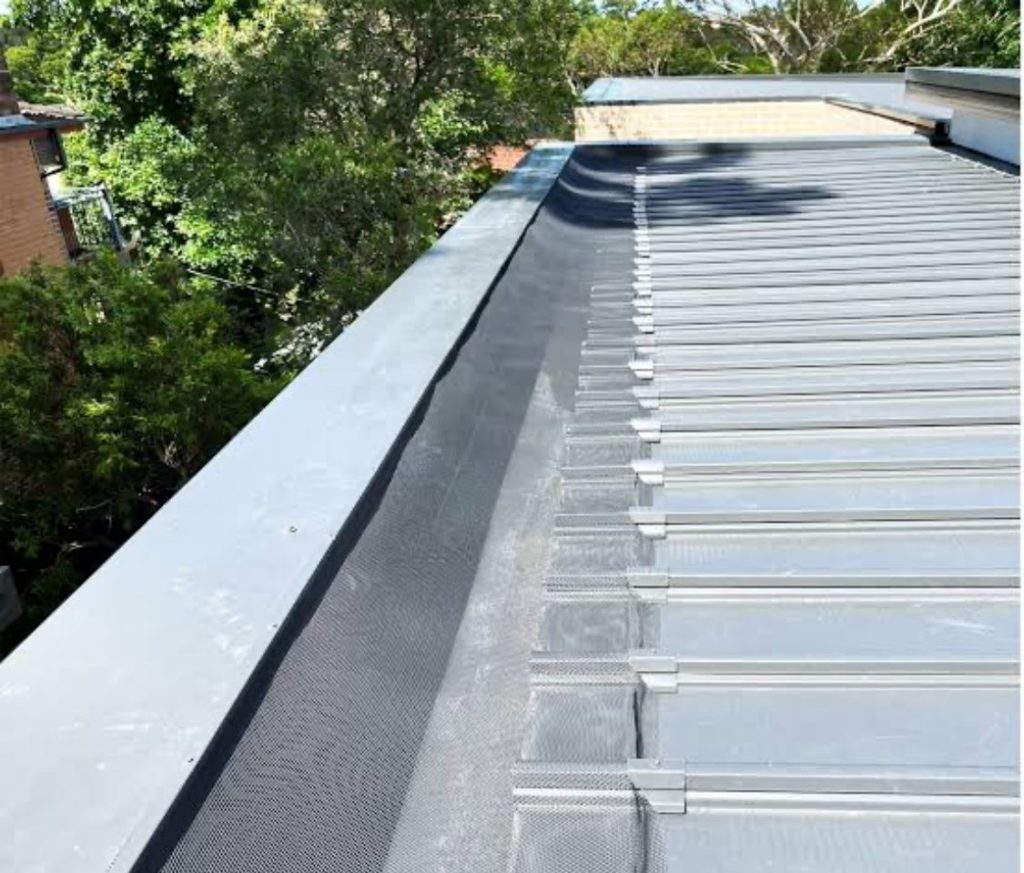

How to Effectively Manage Box Gutters and Drainage for Flat Roofs

On flat roofs, box gutters are commonly utilised to connect roof panels to drainage outlets. Given that box gutters are situated below the roof plane, they require meticulous detailing and installation to avoid blockages and issues related to water back-up.

Common challenges associated with box gutters include:

• Accumulation of debris from nearby trees and foliage
• Improper fall or slope that inhibits effective water flow
• Overflowing back into the roof structure, which can lead to leaks
• Blocked downpipes that hinder effective drainage

Tackling these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Essential Considerations Should You Bear in Mind When Selecting Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow demands of flat roofs. It is often necessary to install guttering specifically designed to manage larger water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

We highly recommend self-cleaning gutter designs, ideal for flat metal roofs while also offering an aesthetically pleasing finish!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design effectively sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be suitably sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) capable of managing substantial water volumes. In areas abundant with trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Play a Critical Role in Preventing Water Entry at Roof Joints?

Flashings are vital components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is crucial, as water can accumulate around these joints if they are not adequately sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is necessary at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes extra precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in vulnerable areas.

Why Is Regular Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Clearing debris from gutters and box gutters to maintain unobstructed drainage
• Inspecting downpipes for any indications of potential blockages
• Checking roof surfaces for small cracks or areas where water may pond
• Re-sealing flashings as necessary to uphold waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Uncover the Advantages of Properly Installed Flat Roofs

When crafted and installed by skilled metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that elevates property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed appropriately, enhancing the overall functionality and appearance of the building.

How to Ensure You Achieve the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in the coastal environment. Whether you are undertaking a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer on the horizon, now is the perfect time to address any roofing concerns and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may pond or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be advantageous in reducing maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
